2.83 inch IPS TFT 480 * 640 high-definition 50PIN interface SPI/RGB
industrial control terminal display screen
Product Overview
1.1 Description
The YT028B006_v01 is a color active matrix thin film transistor
(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT
as a switching device. This TFT LCD has a 2.83 (4:3) inch
diagonally measured active display area with 480*640 (480
horizontal by 640 vertical pixel) resolution.
1.2 Feature
-IPS type for main TFT-LCD panel
-262K color by SPI/RGB signal input
-Structure COG+FPC+BL
General specifications
| No. | Item | Specification | Unit |
| 1 | LCD Size | 2.83 | inch |
| 2 | Panel Type | Transmissive/Positive | - |
| 3 | Resolution | 480 x (RGB) x 640 | pixel |
| 4 | Display Mode | Transmissive,Normal Black | - |
| 5 | Display Number of Colors | 262K | - |
| 6 | Viewing Direction | ALL | - |
| 7 | Contrast Ratio | 500:1 | - |
| 8 | Luminance | 300 | cd/m2 |

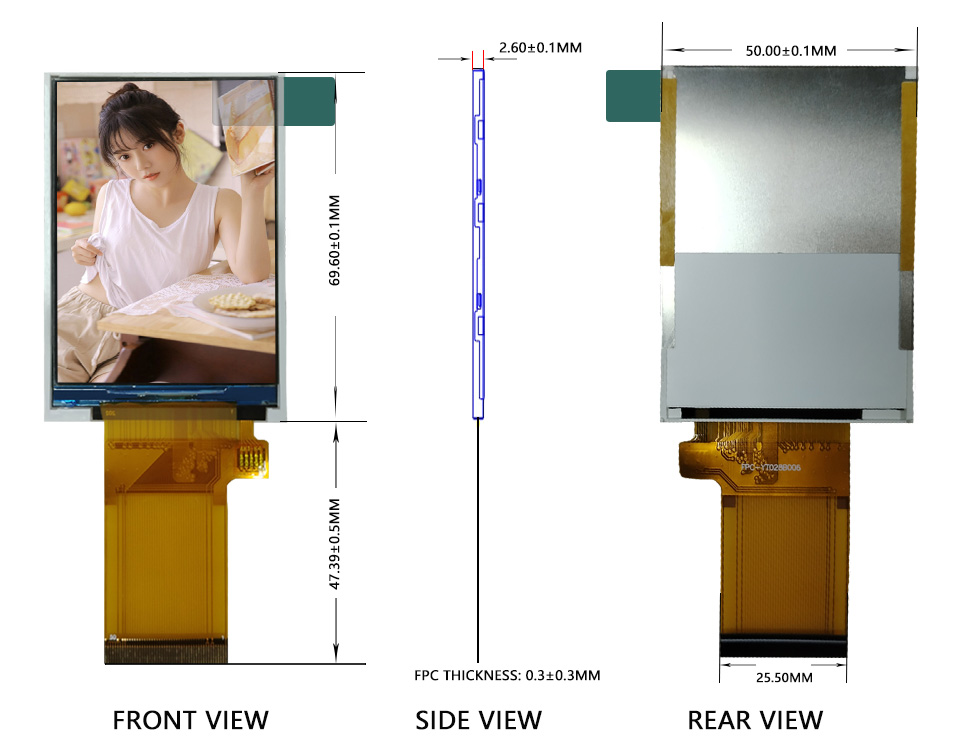

| 9 | Module Size | 50.00(H) x 69.60(V) x2.6(D) | mm |
| 10 | Active Area | 43.20(H) x 57.60(V) | mm |
| 11 | Pixel Pitch | 0.153(H) x 0.153(V) | mm |
| 12 | Weight | 10 | g |
| 13 | Driver IC | ST7701S | - |
| 14 | Driver IC RAM Size | - | bit |
| 15 | Light Source | 6 LEDs White | - |
| 16 | Interface | SPI/18BIT RGB | - |
| 17 | Operating Temperature | -20~70 | ℃ |
| 18 | Storage Temperature | -30~80 | ℃ |
Product Details
Our factory
FAQ
1,Where can I obtain data tables, initialization code, and other
technical files?
Sorry, the website currently does not support uploading/downloading
files. Please contact our sales chat room on Trade Manager or send
me an email, and we will send the data sheet via email.
2,Is there a touch screen on the monitor?
If you need, we can provide you with a resistive touch screen or a
capacitive touch screen.
Resistive touch screen RTP is the most common and cost-effective
touch screen technology. No matter what material is used, they will
be activated by the contact of any object. They have low cost and
can operate under various temperature and environmental conditions.
Capacitive touch panel - allows for multi touch operation on smartphones or tablets, and
allows more light to pass through, providing brighter display. It
is more expensive than resistive touch screens and can only
recognize touch from skin or special pens.
3,Is it possible to make the monitor brighter?
Yes, please share more detailed information about the project
requirements with us, and we will strive to find a solution and
customized high brightness backlight for you. And make it readable
under sunlight.
4,How to understand inventory for sale?
The inventory level is based on the sales history of the product.
We immediately handle most small batch orders. If a certain item is
out of stock after you place an order, we will contact you. If your
order quantity exceeds 1K, please contact our sales department for
pricing, inventory status, and delivery time.
5, Endless supply, our long-term continuous supply guarantee.
We understand that you may be concerned about whether we will still
provide monitors after your prolonged development. Adia promises
every customer that every product we sell on this website. We
promise long-term continuous supply and will never stop supplying.
Some controller ICs may cease production, and we will strive to
find fully compatible ones. If there is no equivalent product, we
will manufacture new tools and use the most similar IC as a
replacement. So even if your research time is long, you don't have
to worry.
6,What is the scope of warranty and how long is the warranty
period?
All products are covered by our limited warranty, which states that
all products have no functional defects within one year from the
date of shipment, and no appearance defects or missing parts within
30 days from the date of shipment. If the product is damaged during
transportation or the order is incorrect, you must notify us within
7 days of receipt.
7,I am a beginner in developing LCD display modules.
Please don't worry. If you encounter any problems while trying to
turn on the monitor, our engineers will assist you. We will send
you complete development documents (data sheets, initial code,
schematics, CAD drawings, etc.) and help you easily get started.
