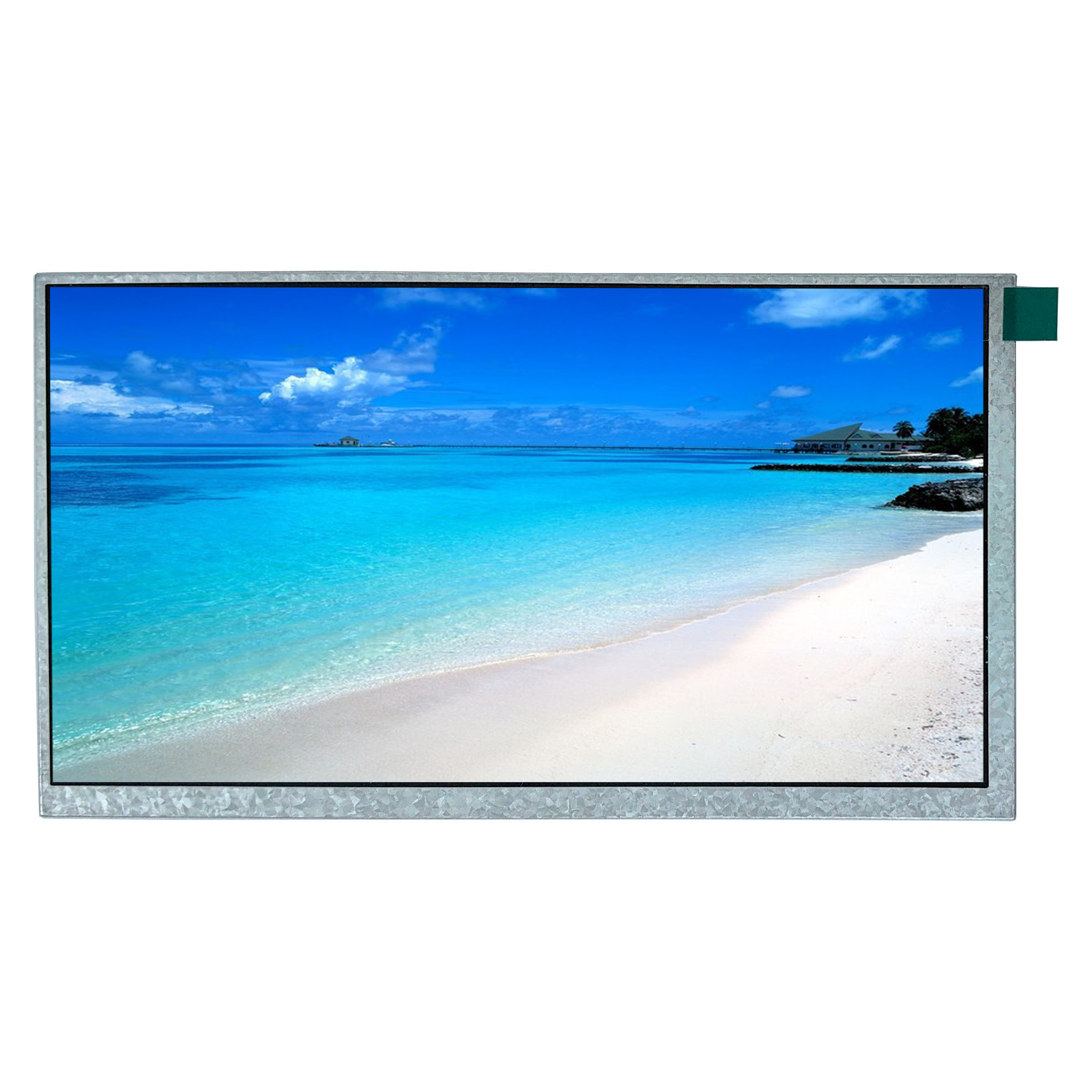

7.0inch TN 800*480 Military grade ultra wide working range -40~90℃
100% aging for 12 hours before shiping.
We mainly produce LCD screens and touch screens to provide
customers with display solutions and products. Customizable for
various standard and non-standard differentiated products, with
multiple standard and differentiated products available. The
products are widely used in fields such as instruments,
smartphones, tablets, POS machines, medical equipment, car
machines, intelligent robots, smart homes, smart wearable products,
drones, VR/AR eyes, and military products. The products strive for
high quality, low power consumption, fast delivery, reasonable
prices, and timely technical support.
Product details:
Brand:BOE
Model P/N:DWM069GAP1.2
Diagonal Size:7.0"
Panel Type:a-Si TFT-LCD, LCM
Resolution800(RGB)×480, WVGA 133PPI
Pixel Format:RGB Vertical Stripe
Active Area:152.4(W)×91.44(H) mm
Bezel Opening:155.3(W)×94.3(H) mm
Outline Size: 165(W)×104(H) ×5.8(D) mm
Brightness: 400 cd/m² (Typ.)
Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)
Display Colors: 262K 50% NTSC
Best View on: 6 o'clock
Frequency: 60Hz
Weight: 136.2g (Typ.)
Left / Right / Up / Down
Contrast Ratio: 1000:1 (Typ.) (TM)
Display Mode: TN, Normally White, Transmissive
Response Time: 25 (Typ.)(Tr+Td)
Lamp Type: LED , 20K hours
Touch Screen: Without
Application: Digital Photo Frame Portable DVD Player MP3 PMP
Signal Interface:TTL (1 ch, 6-bit) , 60 pins Connector
Input Voltage:3.3V (Typ.)(VCC)
Environment Operating Temp.: -40 ~ 90 °C ; Storage Temp.: -40 ~ 90
°C
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
INNOLUX M195FGK-L30 General Features
| Panel Brand : | INNOLUX |
| Panel Model : | DWM069GAP1.2 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 156.4×82.08 mm |
| Outline : | 167×93.1×5.35 mm |
| Surface : | Hard coating (6H) |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Without Driver |
| Signal Interface : | RGB , 60 pins |
| Input Voltage : | 3.3V (Typ.)
|
Why Choose Us?
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in international trade for the LCD display
sourcing.
6. Fabulous after-sale service.
7. The brand we could hand for the LCD Panel contained but not
limited to AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC,
Samsung, Sharp, Optrex and more other industrial LCD Screen.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NJ070NA-23A | INNOLUX | 7.0 inch | 1024×600 |
| AT070TN92 | CMI/INNOLUX | 7.0 inch | 800×480 |
| LN070ICN-PB1 | INNOLUX | 7.0 inch | 800×1280 |
| LS043K1SX02 | SHARP | 4.3 inch | 720×1280 |
| AT043TN25 | INNOLUX | 4.3 inch | 480×272 |
We also have other industrial LCD panels, pls contact to us for the
further information: czclcm@126.com
