Small LCD screen 2.4-inch IPS type 240 * 320 resolution MCU
interface ST7789P3 driver IC instrument display terminal
Product Overview
1.1 Description
The YT024B023-v02 is a color active matrix Thin Film Transistor
(TFT) Liquid Crystal Display (LCD) that uses amorphous
silicon(a-Si) TFT as a switching device. This module has a single
2.4 inches diagonally measured active area with QVGA resolutions(
240 horizontal by 320vertical pixel array) . Each pixel is divided
into RED, GREEN, BLUE dots which are arranged in vertical stripe
and this module can display 262K colors. The TFT-LCD panel used for
this module is adapted for a low reflection and higher color type.
1.2 Feature
-ADS type for main TFT-LCD panel
-Structure COG+FPC+BL
-Full, Normal (Still), Partial, Sleep, Standby mode are available
1.3 Application
-Display terminals for cellular phone
General Specifications
| No. | Ltem |
Specification
| Unit | Remark |
|---|
| 1 | LCD Size | 2.4 | inch | - |
|---|
| 2 | Panel TYpe | a-Si TFT active matrix | - | - |
|---|
| 3 | Resolution | 240 x (RGB) x 320 | pixel | - |
|---|
| 4 | Display Mode | Normally Black,Transmissive | - | - |
|---|
| 5 | Display Number of Colors | 262K color | - | - |
|---|

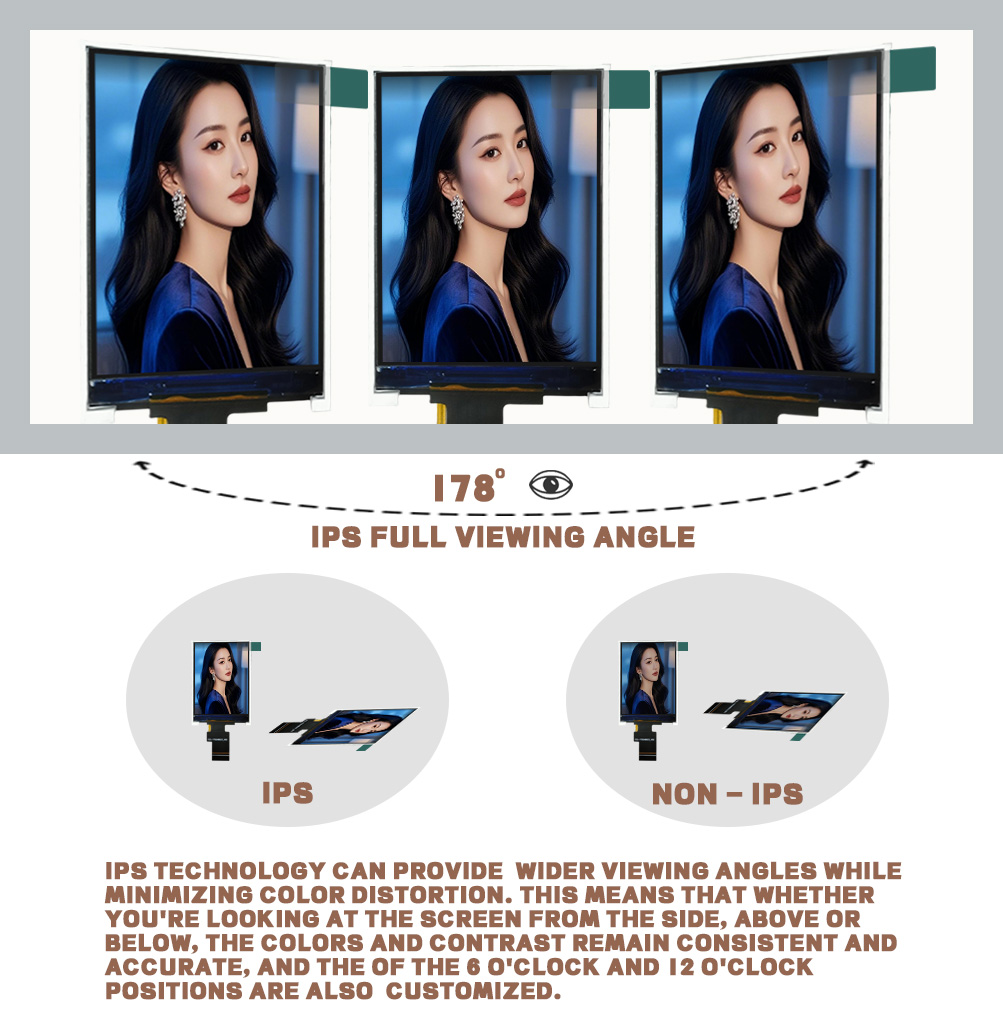

| 6 | Viewing Direction | ALL o′clock | (°) | Note |
|---|
| 7 | Contrast Ratio | 1200:1 | - | - |
|---|
| 8 | Luminance | 300 | cd/m2 | - |
|---|
| 9 | Module Size | 42.72(W ) x 60.26(L) x 2.3(T) | mm | Note |
|---|
| 10 | Active Area | 36.72(W) x 48.96(L) | mm | Note |
|---|
| 11 | Pixel Pitch | 0.51(W ) x 0.153(L) | mm | - |
|---|
| 12 | Back Light | 4 LEDs White | - | - |
|---|
| 13 | weight | 22 | g | - |
|---|
| 14 | Power Supply Voltage | VDD=2.3~3.3 | V | - |
|---|
| 15 | Respone time | 12 | ms | - |
|---|
| 16 | Interface | 8BIT MCU | - | - |
|---|
| 17 | Operating Temperature | -20~70 | ℃ | - |
|---|
| 18 | Storage Temperature | -30~80 | ℃ | - |
|---|
Product Details
Our factory
FAQ
Q1.What is your product range?
A1: We are 12 years of experience manufacturing TFT LCD and touch
screen.
>0.96" to 32" TFT LCD Module;
>Bar type LCD screen up to 48 inch;
>High brightness LCD panel custom;
>Capacitive touch screen up to 55"
>4 wire 5 wire resistive touch screen;
>One-step solution TFT LCD assemble with touch screen.
Q2.Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
>For the LCD display,backlight brightness and FPC cable can be
customized;
>For the touch screen,we can custom the whole touch panel like
the color,shape,cover thickness and so on according to the
customer's requirement.
>NRE cost will be refunded after the total quantity reaches 1K
pcs.
Q3.Which applications your products are mainly used for?
A3: Embedded system, Intercom system,Biometric,HMI,Smart home
,Robot,Hand-held PDA, after market automotive and etc.
Q4.What's the delivery time?
A4: >For samples order, 1-2weeks;
>For mass ordres,4-6weeks.
Q5.Do you provide free samples?
A5: For first time cooperation,samples will be charged,the amount will
be returned at the mass order stage. In regular cooperation,
samples are free. Sellers keep the right for any change.
Q6. Where can I get the datasheet, initialization code and other
technical files ?
A6:Unfortunately, This can not Support upload/download the files
for the time being, please contact with our sales.chat on Trade
Manager or send me a email (dyh0707@foxmail.com), we will send the datasheet by mail.
