3.5-inch IPS display screen with high-definition resolution of 320
* 480 interface 8080 parallel port industrial control terminal
display screen
Product Overview
1.1 Description
YT035F014 _V01 is an active matrix TFT-LCD model that uses
amorphous silicon TFT (thin film transistor) as the active
switching device. It is a transmissive display that operates in
normal black color. The effective area of this TFT LCD display is
measured diagonally at 3.5 inches, with an array of 320 horizontal
by 480 vertical pixels. Each pixel is divided into vertically
striped red, green, and blue dots, and the panel can display 262K
million colors.
1.2 Feature
-Module Design
-RoHS Compliant
-TFT Interface: 8080 parallel port
General specifications
| No. | Item | Specification | Unit |
| 1 | LCD Size | 3.5 | inch |
| 2 | Panel Type | IPS | - |
| 3 | Resolution | 320 x (RGB) x 480 | pixel |
| 4 | Display Mode | Transmissive,Normal Black | - |
| 5 | Display Number of Colors | 262K | - |
| 6 | Viewing Direction | ALL | - |
| 7 | Contrast Ratio | 500 | - |
| 8 | Luminance | 300 | cd/m2 |

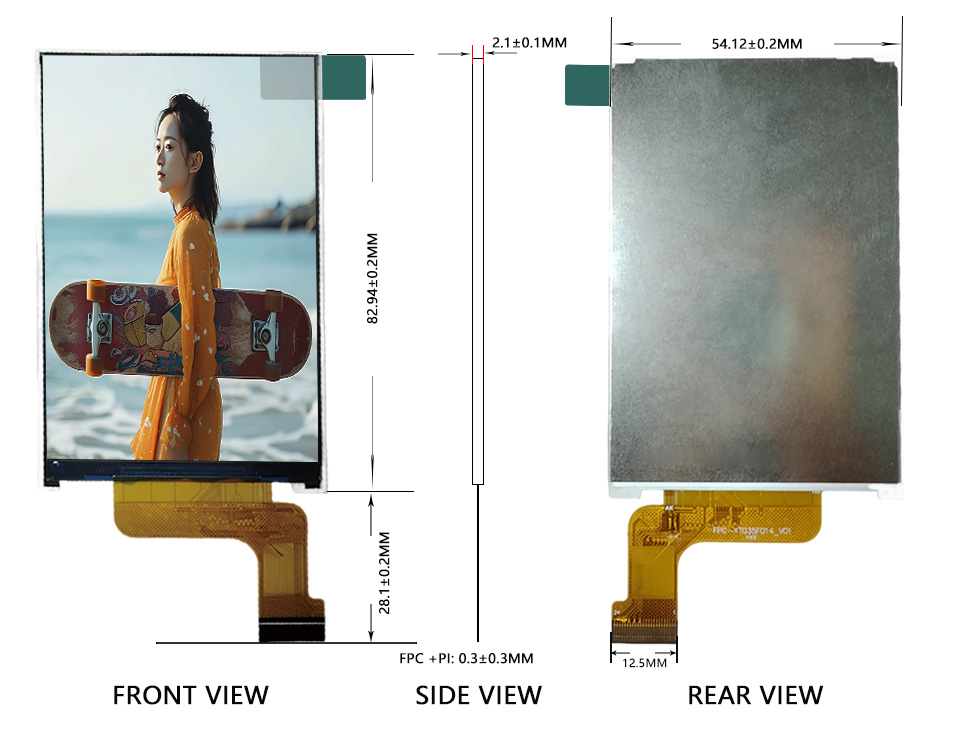

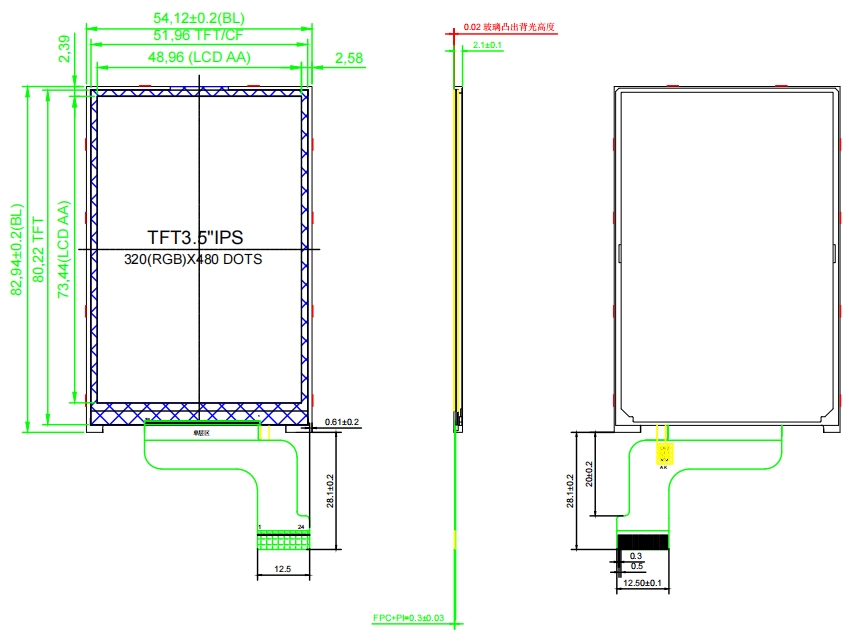

| 9 | Module Size | 54.12(H) x 82.94(V) x2.1(D) | mm |
| 10 | Active Area | 48.96(H) x 73.44(V) | mm |
| 11 | Pixel Pitch | 0.145(H) x 0.145(V) | mm |
| 12 | Weight | 8 | g |
| 13 | Driver IC | ST7796U | - |
| 14 | Driver IC RAM Size | 320x24x480 | bit |
| 15 | Light Source | 8 LEDs White | - |
| 16 | Interface | 8080 parallel port | - |
| 17 | Operating Temperature | -20~70 | ℃ |
| 18 | Storage Temperature | -30~80 | ℃ |
Product Details
Our factory
FAQ
Q1.What is your product range?
A1: We are 12 years of experience manufacturing TFT LCD and touch
screen.
>0.96" to 32" TFT LCD Module;
>Bar type LCD screen up to 48 inch;
>High brightness LCD panel custom;
>Capacitive touch screen up to 55"
>4 wire 5 wire resistive touch screen;
>One-step solution TFT LCD assemble with touch screen.
Q2.Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
>For the LCD display,backlight brightness and FPC cable can be
customized;
>For the touch screen,we can custom the whole touch panel like
the color,shape,cover thickness and so on according to the
customer's requirement.
>NRE cost will be refunded after the total quantity reaches 1K
pcs.
Q3.Which applications your products are mainly used for?
A3: Embedded system, Intercom system,Biometric,HMI,Smart home
,Robot,Hand-held PDA, after market automotive and etc.
Q4.What's the delivery time?
A4: >For samples order, 1-2weeks;
>For mass ordres,4-6weeks.
Q5.Do you provide free samples?
A5: For first time cooperation,samples will be charged,the amount will
be returned at the mass order stage. In regular cooperation,
samples are free. Sellers keep the right for any change.
Q6. Where can I get the datasheet, initialization code and other
technical files ?
A6:Unfortunately, This can not Support upload/download the files
for the time being, please contact with our sales.chat on Trade
Manager or send me a email (dyh0707@foxmail.com), we will send the datasheet by mail.
