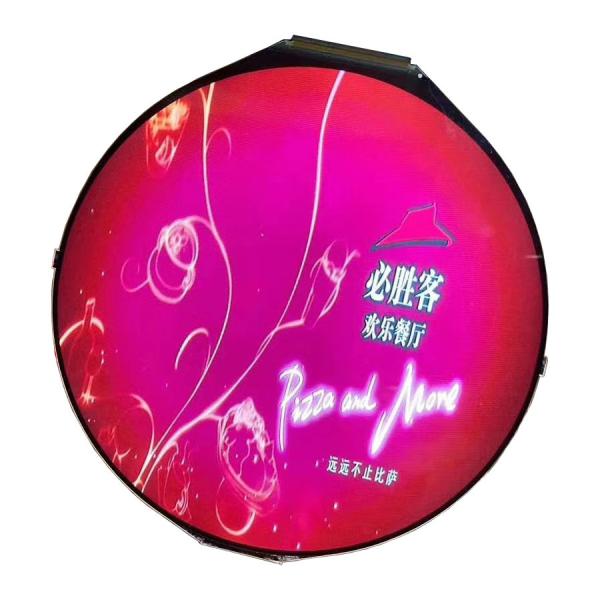

5.0 inch Industrial TFT Display With Round Display 1080x1080 Dots

YT050B002 It is a 5.0 inch LCD module product with LTPS TFT LCD technology. It is equipped with WLED backlight, no backlight drive and no touch. The typical features of screen library are: sRGB, circular display, landscape mode / portrait mode, white LED backlight. Its operating temperature is -20 ~ 60 ° C and the storage temperature is -30 ~ 75 ° C. This model is suitable for circular display, instrument and household appliances. According to the information mastered by the screen library, the product will be mass produced in Q1 in 2020, and the current production status is in mass production. At present, zs050ymm-n40 has 0 spot information and 0 supplier information on the screen library, and the trading atmosphere is light. The screen library first established parameters for this model on November 03, 2020. According to the product specification of ver pre.0 issued by BOE on may24,2019, zs050ymm-n40 display resolution is 1080 (RGB) x 1080, width to height ratio is 1:1 (width: height), pixels are arranged in RGB vertical strip, and the pixel density calculated by screen library is 215 PPI. The display area size is 127.008 × 127.008 (width × height) mm, and the appearance dimension is 136.531 (width) x 132.208 (height) mm. In the aspect of backlight, this product adopts side in light source with WLED light source, and the service life of light source is 30K hours, without backlight driving. Zs050ymm-n40 adopts Mipi (4 data lands) signal interface, with a total of 50 pins. Terminal connection is adopted. The drive screen voltage is 1.8/5.0 / - 5.0V (typ.) (iovcc/vsp/vsn). Its typical vertical refresh rate FV is 60Hz.

Features

0.2t Glass (Single)
High contrast ratio and wide viewing angle
Module Design
RoHS Compliant

Application

It can be used in circular display, instruments, household appliances, etc...

General Specifications

Outline Dimension (unit: mm)

Related Products

PRECAUTIONS

1.HANDLING

1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.

1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.

1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.

1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.

2.STORAGE

2.1. Keep in a sealed polyethylene bag.

2.2. Keep in a dark place.

2.3. Keep in temperature between 0°C and 35°C.

NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.

3.SAFETY

If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.

4.LIMITED WARRANTY

Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.

4.1RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS

4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :

- Broken LCD glass.

- Circuit modified in any way, including addition of components.

4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.
