800*480 40pin Industrial TFT Display Panel 5.0 Inch RoHS Approved
5.0 inch diagonal a-Si TFT-LCD display panel product from Chimei Innolux
Corporation (hereafter called Chinmei Innodux), with an integral
WLED backlight system, without backlight driver, without touch
screen. It features an operating temperature range of -20 ~ 70°C ,
a storage temperature range of -30 ~ 80°C .
General Specifications of Industrial TFT Display
| NO. | Item | Specification | Unit | Remark |
| 1 | LCD Size | 5.0 | inch | - |
| 2 | Panel Type | TN | - | - |
| 3 | Resolution | 800x (RGB) x 480 | pixel | - |
| 4 | Display Mode | Normally White | - | - |
| 5 | Display Number of Colors | 262K/16M | - | Note |
| 6 | Viewing Direction | 6'clock | - | - |
| 7 | Contrast Ratio | 500(TYP) | - | - |
| 8 | Luminance | 350(TYP) | cd/m2 | Note |
| 9 | Module Size | 120.7(H)×76.3(V) ×3.3(D) mm | mm | Note |
| 10 | Active Area | 108(H)×64.8(V) mm | mm | - |
| 11 | Bezel Area | 110.6(H)×67.6(V) mm | mm | - |
| 12 | Weight | - | g | - |
| 13 | Driver IC | - | - | - |
| 14 | CTP Driver IC | - | - | - |
| 15 | Driver IC RAM Size | RAMLess | bit | - |
| 16 | CTP Interface | - | - | |
| 17 | Light Source | 27LEDs White | - | - |
| 18 | Interface | Parallel RGB (1 ch, 8-bit) , 50 pins FPC | - | - |
| 19 | Operating Temperature | -20~70 | ºC | - |
| 20 | Storage Temperature | -30~80 | ºC | - |

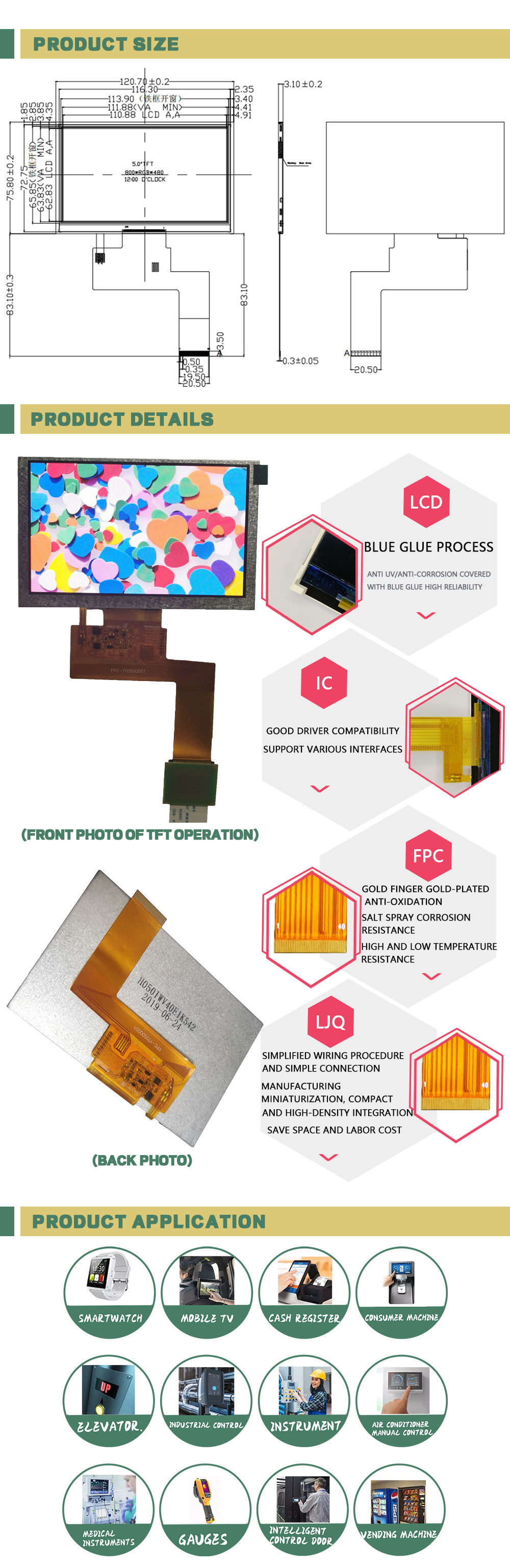

5.0inch 40pin industrial TFT Display Panel product details
Advantage
>We are professional LCD module manufacture in China with precise
and advanced equipments.
>High quality Control with CE, ROHS and so on approved.
>More than 10 years of industry experience and involved main markets
all over the world
>Dedicated and professional sales team will offer you 24 hours
online and immediate service
>OEM and ODM support,12 months warranty for all of our products
>Our mission is to help our customers achieve success, then fulfill
our both dreams
FAQ
Q1.What is your product range?
A1: We are 12 years of experience manufacturing TFT LCD and touch
screen.
>0.96" to 32" TFT LCD Module;
>Bar type LCD screen up to 48 inch;
>High brightness LCD panel custom;
>Capacitive touch screen up to 55"
>4 wire 5 wire resistive touch screen;
>One-step solution TFT LCD assemble with touch screen.
Q2.Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
>For the LCD display,backlight brightness and FPC cable can be
customized;
>For the touch screen,we can custom the whole touch panel like
the color,shape,cover thickness and so on according to the
customer's requirement.
>NRE cost will be refunded after the total quantity reaches 1K
pcs.
Q3.Which applications your products are mainly used for?
A3: Embedded system, Intercom system,Biometric,HMI,Smart home
,Robot,Hand-held PDA, after market automotive and etc.
Q4.What's the delivery time?
A4: >For samples order, 2-3weeks;
>For mass ordres,4-6weeks.
Q5.Do you provide free samples?
A5: For first time cooperation,samples will be charged,the amount will be
returned at the mass order stage. In regular cooperation, samples
are free. Sellers keep the right for any change.
