Overview of NJ070NA-23A (1024x600) 7-inch TFT LCD Module
The specification NJ070NA-23A is a 7 ”(1024x600) TFT Liquid
Crystal, Display module with LED Backlight unit , 40 pin LVDS
interface, normally white transmissive display mode. This module
will be applied to Consumer Electronics(CE Application)

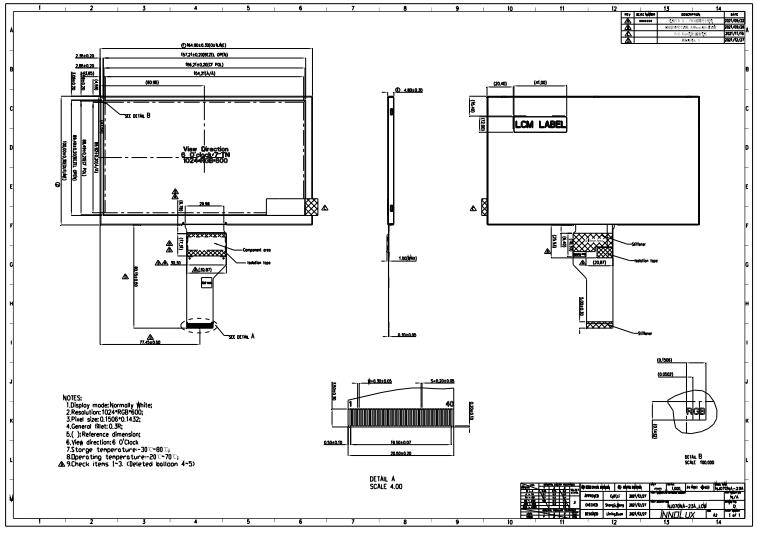

Outline Dimension (unit: mm)
General Specifications
Product Name | NJ070NA-23A ,40 pin LVDS interface, normal white transmission display mode,
applied to consumer electronics (CE application) |
Resolution | 1024 × 3(RGB) × 600 |
Viewing Direction | |
Backlight power consumption | |
Interface | LVDS |
Driver IC | |
Outline Dimension | 181(L)*165(W)*4.8(T) |
Viewing Area | 85.9(L)*154(W) |
Backlight power consumption | |
General Precautions
P1: Safety
1. Liquid crystal is poisonous. Do not put it in your mouth. If
liquid crystal touches your skin or clothes, wash it off
immediately by using soap and water.
2.The temperature for use is no more than 80 C, otherwise, only
promise the function is OK, but the quality may be changed.
P2: Handling
1. The LCD panel is plate glass. Do not subject the panel to
mechanical shock or to excessive force on its surface.
2. The polarizer attached to the display is easily damaged. Please
handle it carefully to avoid scratch or other damages.
3. To avoid contamination on the display surface, do not touch the
module surface with bare hands.
4. Keep a space so that the LCD panels do not touch other
components.
5. Put cover board such as acrylic board on the surface of LCD
panel to protect panel from damages.
6. Transparent electrodes may be disconnected if you use the LCD
panel under environmental conditions where the condensation of dew occurs.
7. Do not leave module in direct sunlight to avoid malfunction of
the ICs.
P3:Static Electricity
1. Be sure to ground module before turning on power or operating
module.
2. Do not apply voltage which exceeds the absolute maximum rating
value.
P4: Storage
1. Store the module in a dark room where must keep at 25±10℃ and 65%RH or less.
2. Do not store the module in surroundings containing organic
solvent or corrosive gas.
3. Store the module in an anti-electrostatic container or bag.
P5:Cleaning
1. Do not wipe the polarizer with dry cloth. It might cause
scratch.
2. Only use a soft sloth with IPA to wipe the polarizer, other
chemicals might permanent damage to the polarizer.
