2.86 inch 376 * 960 TFT liquid crystal display screen for point
reading pen, small-sized strip capacitive touch screen
Product Overview
1.1 Description
The QCG286VG992-A1 is acolor active matrix TFT-LCD Modelusing
amorphous silicon TFT's (Thin Film Transistors) as an active
switching devices. It is a transmissive type display operating in
the normal black. This TFT-LCD has a 2.86 inch diagonally measured
active area with 376 horizontal by 960 vertical pixel array. Each
pixel is divided into Red , Green, Bluedots which are arranged in
vertical stripe and this panel can display 16.7M colors.
1.2 Feature
-0.4t Glass(Single)
-Module Design
-RoHS Compliant
-TFT Interface: 3-SPI+18BIT RGB Interface
1.3 Application
- Industrial control, learning machine, instrumentation, smart home
appliances, smart homes, mobile phones, and other display
terminals.
General Specifications
| No. | Ltem |
Specification
| Unit | Remark |
|---|
| 1 | LCD Size | 2.86 | inch | - |
|---|
| 2 | Panel TYpe | IPS TFT Capacitive Touch Screen | - | - |
|---|
| 3 | Resolution | 376 x (RGB) x 960 | pixel | - |
|---|
| 4 | Display Mode | IPS/ Transmissive / Normally Black | - | - |
|---|
| 5 | Display Number of Colors | 16.7M color | - | - |
|---|
| 6 | Viewing Direction | ALL | (°) | Note |
|---|
| 7 | Contrast Ratio | 1500 | - | - |
|---|
| 8 | Luminance | TBD (TYP) | cd/m2 | - |
|---|
| 9 | Module Size | 28.81(W ) x 76.00(L) x2.0(T) | mm | Note |
|---|
| 10 | Active Area | 26.51(W) x 67.68(L) | mm | Note |
|---|
| 11 | Pixel Pitch | 0.0235(W ) x 0.0705(L) | mm | - |
|---|
| 12 | Back Light | White LED*4 | - | - |
|---|
| 13 | Driver IC | ST7701S | - | - |
|---|
| 14 | Driver IC RAM Size | 376x24x960 | bit | - |
|---|
| 15 | Touch Screen Size | 31.23(W ) x 106.08(L) x3.545(T) | mm | - |
|---|
| 16 | Interface | 3-SPI+ 18BIT RGB | - | - |
|---|
| 17 | Operating Temperature | -20~60 | ℃ | - |
|---|
| 18 | Storage Temperature | -40~80 | ℃ | - |
|---|
Product Details

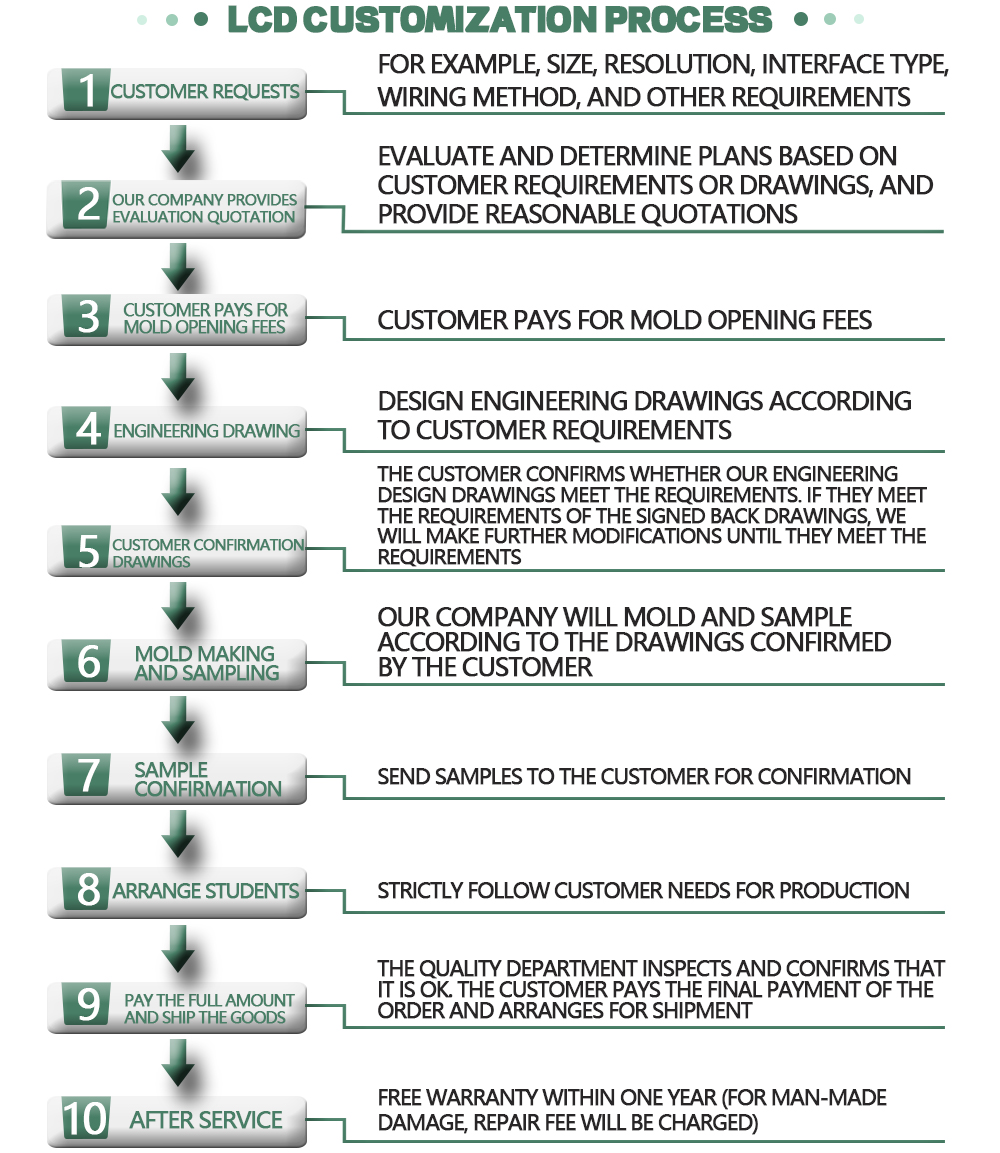

Contact us for customization
Our factory
FAQ
Q1.What is your product range?
A1: We are 12 years of experience manufacturing TFT LCD and touch
screen.
>0.96" to 32" TFT LCD Module;
>Bar type LCD screen up to 48 inch;
>High brightness LCD panel custom;
>Capacitive touch screen up to 55"
>4 wire 5 wire resistive touch screen;
>One-step solution TFT LCD assemble with touch screen.
Q2.Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
>For the LCD display,backlight brightness and FPC cable can be
customized;
>For the touch screen,we can custom the whole touch panel like
the color,shape,cover thickness and so on according to the
customer's requirement.
>NRE cost will be refunded after the total quantity reaches 1K
pcs.
Q3.Which applications your products are mainly used for?
A3: Embedded system, Intercom system,Biometric,HMI,Smart home
,Robot,Hand-held PDA, after market automotive and etc.
Q4.What's the delivery time?
A4: >For samples order, 1-2weeks;
>For mass ordres,4-6weeks.
Q5.Do you provide free samples?
A5: For first time cooperation,samples will be charged,the amount will
be returned at the mass order stage. In regular cooperation,
samples are free. Sellers keep the right for any change.
Q6. Where can I get the datasheet, initialization code and other
technical files ?
A6:Unfortunately, This can not Support upload/download the files
for the time being, please contact with our sales.chat on Trade
Manager or send me a email (dyh0707@foxmail.com), we will send the
datasheet by mail.
