2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight

Ask Lasest Price
Brand Name :	Adia
Model Number :	YT269BHD002
Certification :	RoHS
Price :	USD 19-20/ PCS
Supply Ability :	1k/m
Delivery Time :	20-25

Add to Cart

Product Details
Company Profile

2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight

2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight

2.69 inch 1280 * 720 projector LCD FOG panel no backlight high-definition IPS TFT LCD screen panel LVDS 30 pin projector

Product Overview

YT269BHD002 is a TFT-LCD module. It consists of a TFT-LCD panel, driver IC, and FPC. The 2.69-inch display area contains 1280 * 720 pixels and can display up to 16.7M colors. This product is suitable for various projector display terminals and meets RoHS environmental standards.

General Specifications

No.	Item	Specification	Unit	Remark
1	LCD Size	2.69	inch	-
2	Panel Type	IPS type LCD screen (module)	-	-
3	Resolution	1280RGB*720	pixel	-
4	Display Mode	Normally Black,Transmissive	-	-
5	Display Number of Colors	16.7M	-	-
6	Viewing Direction	All	-	Note
7	Contrast Ratio	1000:1	-	-
8	response time	30	ms	-
9	Module Size	63.0(W ) x 38.97(H)x1.25(D)	mm	Note
10	Active Area	59.52(W) x 33.48(H)	mm	Note
11	Pixel Pitch	0.045(H) x 0.045(V)	mm	-
12	Weight	TBD(TYP)	g	-
13	LCD Driver IC	SC5014	-	-
14	Color arrangement	RGB stripe	-	-
15	pin count	30	-	-
16	Interface	SPI+LVDS	-	-
17	Operating Temperature	-20~80	℃	-
18	Storage Temperature	-30~80	℃	-

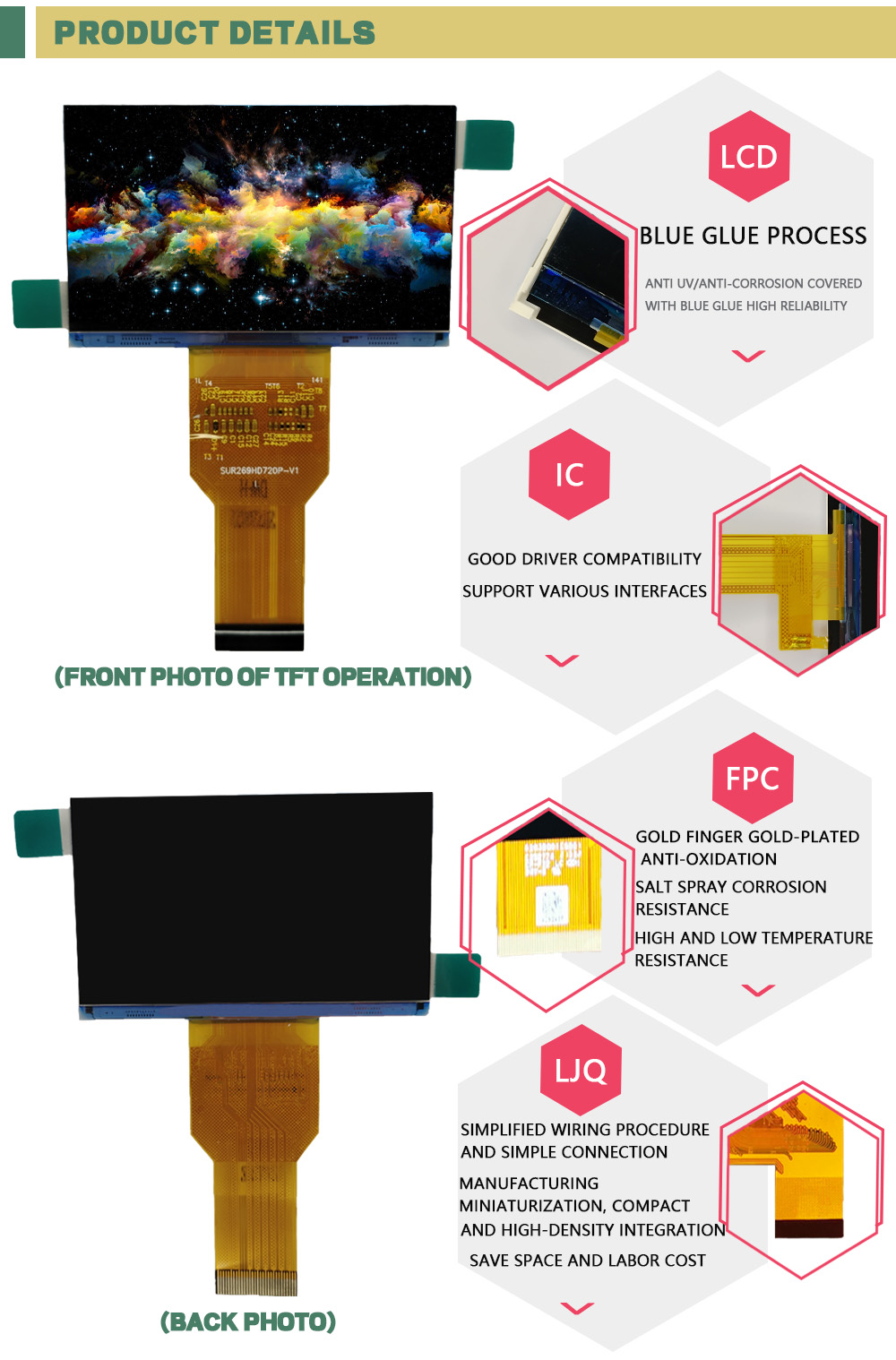

Product Details

FAQ

Q1.What is your product range?

A1: We are 12 years of experience manufacturing TFT LCD and touch screen.

>0.96" to 32" TFT LCD Module;

>Bar type LCD screen up to 48 inch;

>High brightness LCD panel custom;

>Capacitive touch screen up to 55"

>4 wire 5 wire resistive touch screen;

>One-step solution TFT LCD assemble with touch screen.

Q2.Can you custom the LCD or touch screen for me?

A2: Yes we can provide the custom services.

>For the LCD display,backlight brightness and FPC cable can be customized;

>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.

>NRE cost will be refunded after the total quantity reaches 1K pcs.

Q3.Which applications your products are mainly used for?

A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.

Q4.What's the delivery time?

A4: >For samples order, 1-2weeks;

>For mass ordres,4-6weeks.

Q5.Do you provide free samples?

A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
