    480*272 Anti Glare TFT LCD Displays For Industrial Or Game Console

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : AT043TN25-V.2
    Certification : RoHS
    Price : USD 11-14.50/ PCS
    Supply Ability : 1k/m
    Delivery Time : 15-22
    • Product Details
    • Company Profile

    480*272 Anti Glare TFT LCD Displays For Industrial Or Game Console

    480*272 Anti Glare TFT LCD Displays For Industrial Or Game Console


    4.3 Inch TFT LCD 480 * 272 Color Display Module TN Anti-Glare Can Be Used For Industrial Or Game Console


    Product Overview


    AT043TN25-V.2 is a 4.3 inch horizontal screen TFT-LCD color display with anti-glare surface treatment process. The working temperature range is - 20~70 ° C, and the storage temperature range is - 30~80 ° C. Full visual angle. FPC connector is used for module electronic interface, and the recommended model is "FH19SC-40S-0.5SH" made by HIROSE. Based on its characteristics, Panelook recommends that this model be applied to any industrial manufacturing or electronic game machine.



    General Specifications


    NO.ItemSpecificationRemark
    1LCD size4.3inch(Diagonal)
    2Driver elementa-Si TFT active matrix
    3Resolution480*3(RGB)*272
    4Display modeNormally White,Transmissive
    5Dot pitch0.066(W)*0.198(H)mm
    6Active area95.04(W)*53.856(H)mm
    7Module size105.5(W) ×67.2(H) ×2.9(D) mmNote1
    8Surface treatmentAnti-Glare
    9Color arrangementRGB-stripe
    10Drive ICST7735S
    11colourgray
    12Operating temperature range-20℃~70℃
    13Storage temperature range-30℃~80℃
    14InterfaceDigital
    15Backlight Power consumption0.558(Typ.)
    16Panel Power consumption0.056W(Typ.)
    17Weight45g(Typ.)

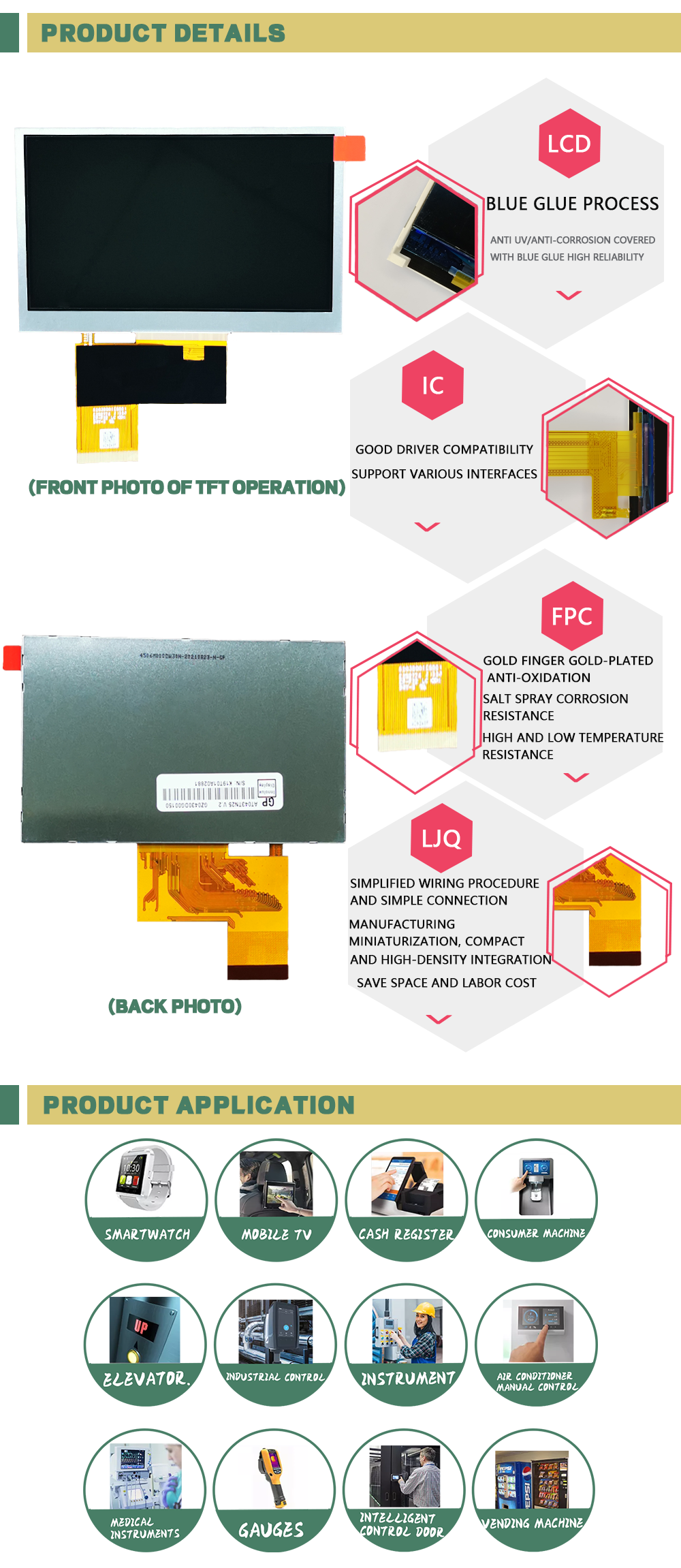

    Product Details


    Quality 480*272 Anti Glare TFT LCD Displays For Industrial Or Game Console for sale
