3.0 inch sun readable, semi transparent, and semi reflective TFT
LCD 240 * 400 resolution with multiple interfaces
Product Overview
1.1 Description
The YT030K001 is a Transflective type color active matrix liquid
crystal display (LCD) , support 240XRGBX400 dot-matrix . The YT030K001 is intended to
support applications where low power are critical factors and
graphic displays are important.
1.2 Feature
-0.5t Glass(Single)
-Module Design
-RoHS Compliant
-TFT Interface:SPI/MCU/RGB
1.3 Application
-Suitable for outdoor handheld detectors, medical instruments,
visual doorbells, industrial control and other terminal display
screens.

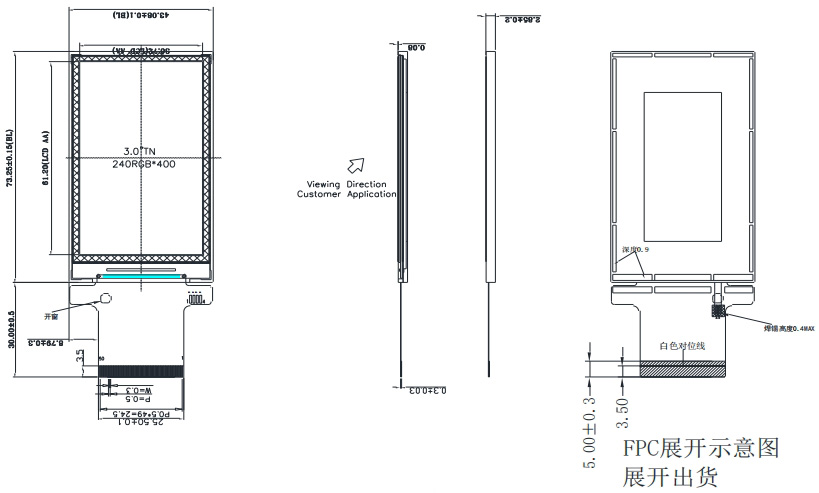

Product Three Dimensional View
General specifications
| No. | Item | Specification | Unit |
| 1 | LCD Size | 3.0 | inch |
| 2 | Panel Type | Normally White,Transflective | - |
| 3 | Resolution | 240x (RGB) x 400 | pixel |
| 4 | Display Working Voltage Range | 1.8~3.3 | V |
| 5 | Display Number of Colors | 262K | - |
| 6 | Viewing Direction | 11 O’ clock(Gray scale inversion)/ 5 O’ clock(Customer Application Vision) | - |
| 7 | Contrast Ratio | 1000:1 | - |
| 8 | Luminance | 300 | cd/m² |
| 9 | Module Size | 43.08(W) x 73.25(L) x2.85(T) | mm |
| 10 | Active Area | 36.72(W) x 61.2(L) | mm |
| 11 | Pixel Pitch | 0.153(W) x 0.153(L) | mm |
| 12 | Driver IC | ILI9327C | - |
| 13 | Module Mass | 13.49 | g |
| 14 | Driver IC RAM Size | 240x24x400 | bit |
| 15 | Backlight Unit | 4 LEDs White | - |
| 16 | Interface | SPI/8BIT,9BIT,16BIT 18BIT MCU/ 16BIT,18BIT RGB | - |
| 17 | Operating Temperature | -20~70 | ℃ |
| 18 | Storage Temperature | -30~85 | ℃ |
Interface definition
Product Details
Our strengths
Our factory
FAQ
Q1.What is your product range?
A1: We are 12 years of experience manufacturing TFT LCD and touch
screen.
>0.96" to 32" TFT LCD Module;
>Bar type LCD screen up to 48 inch;
>High brightness LCD panel custom;
>Capacitive touch screen up to 55"
>4 wire 5 wire resistive touch screen;
>One-step solution TFT LCD assemble with touch screen.
Q2.Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
>For the LCD display,backlight brightness and FPC cable can be
customized;
>For the touch screen,we can custom the whole touch panel like
the color,shape,cover thickness and so on according to the
customer's requirement.
>NRE cost will be refunded after the total quantity reaches 1K
pcs.
Q3.Which applications your products are mainly used for?
A3: Embedded system, Intercom system,Biometric,HMI,Smart home
,Robot,Hand-held PDA, after market automotive and etc.
Q4.What's the delivery time?
A4: >For samples order, 1-2weeks;
>For mass ordres,4-6weeks.
Q5.Do you provide free samples?
A5: For first time cooperation,samples will be charged,the amount will
be returned at the mass order stage. In regular cooperation,
samples are free. Sellers keep the right for any change.
