INNOLUX brand new original screen N070ICN-PB1 display screen, 7inch
800 * 1280 high-definition TFT display color screen
Product Overview
1.1 Description
Model N070ICN-PB1 is a 7.0-inch color active matrix TFT-LCD model
that uses amorphous silicon TFT (thin film transistor) as an active
switching device. It is a transparent display in normal black. This
TFT LCD has a 7.0 inch diagonal measurement active area and an 800
horizontal by 1280 vertical pixel array. Each pixel is divided into
vertically arranged red, green, and blue dot stripes, and this
panel can display 262k colors.
General specifications
| No. | Item | Specification | Unit |
| 1 | LCD Size | 7.0 | inch |

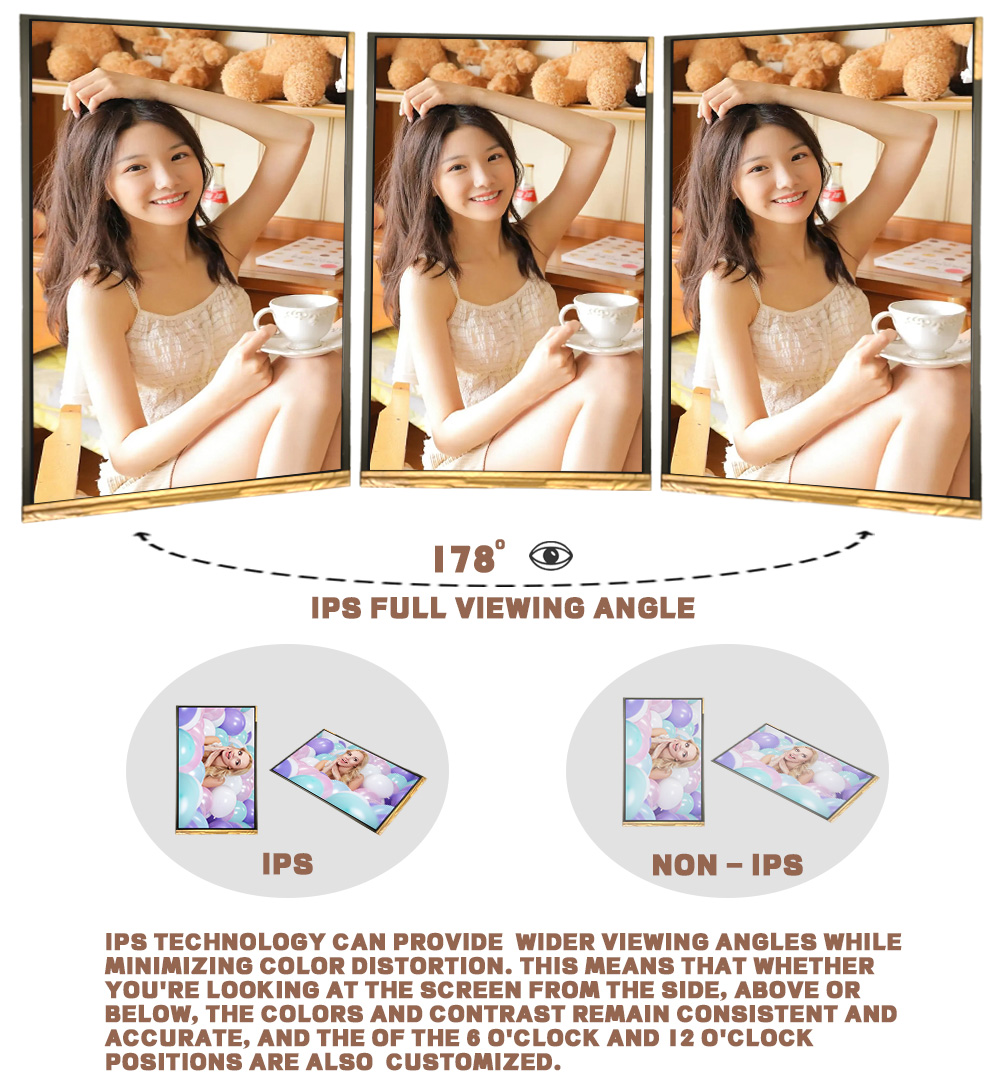

| 2 | Panel Type | IPS | - |
| 3 | Resolution | 800x3 (RGB) x 1280 | pixel |
| 4 | Display Mode | Normally black,Transmissive | - |
| 5 | Display Number of Colors | 262K | - |
| 6 | Viewing Direction | ALL | - |
| 7 | Contrast Ratio | 800:1 | - |
| 8 | Luminance | 280 | cd/m2 |
| 9 | Module Size | 101.5(H ) x 159.65(V) x1.07(D) | mm |
| 10 | Active Area | 94.20(H) x 150.72(V) | mm |
| 11 | Pixel Pitch | 0.03925(H ) x 0.11775(V) | mm |
| 12 | Surface Treatment | Hard Coating | - |
| 13 | Module Weight | 39.7 | g |
| 14 | Driver IC RAM Size | 800x24x1820 | bit |
| 15 | Driver IC | NT35521 | - |
| 16 | Interface | MIPI | - |
| 17 | Operating Temperature | -10~50 | ℃ |
| 18 | Storage Temperature | -20~50 | ℃ |
Product Details
Our strengths
Our factory
FAQ
Q1.What is your product range?
A1: We are 12 years of experience manufacturing TFT LCD and touch
screen.
>0.96" to 32" TFT LCD Module;
>Bar type LCD screen up to 48 inch;
>High brightness LCD panel custom;
>Capacitive touch screen up to 55"
>4 wire 5 wire resistive touch screen;
>One-step solution TFT LCD assemble with touch screen.
Q2.Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
>For the LCD display,backlight brightness and FPC cable can be
customized;
>For the touch screen,we can custom the whole touch panel like
the color,shape,cover thickness and so on according to the
customer's requirement.
>NRE cost will be refunded after the total quantity reaches 1K
pcs.
Q3.Which applications your products are mainly used for?
A3: Embedded system, Intercom system,Biometric,HMI,Smart home
,Robot,Hand-held PDA, after market automotive and etc.
Q4.What's the delivery time?
A4: >For samples order, 1-2weeks;
>For mass ordres,4-6weeks.
Q5.Do you provide free samples?
A5: For first time cooperation,samples will be charged,the amount will
be returned at the mass order stage. In regular cooperation,
samples are free. Sellers keep the right for any change.
