General specifications
| No. | Items | Speciflcations | Unit |
| 1 | Screen Diagonal | 2.8 | inch |
| 2 | Active Area (H x V) | 43.20(H) x 57.60(V) | mm |
| 3 | Number of Pixels (H x V) | 240 x RGB x 320 | - |
| 4 | Pixel Pitch (H x V) | 0.051 x 0.0153 | mm |
| 5 | Pixel Arrangement | R.G.B. Vertical Stripe | - |
| 6 | Display Mode | Normally Black, Transmission-type | - |
| 7 | White Luminance | (250) (Typ.) | cd /m2 |
| 8 | Contrast Ratio | (300) (Typ.) | - |
| 9 | Response Time | (5 )(Typ.) | ms |
| 10 | Input Voltage | VF=3.2V (MAX)IF=60mA | V |

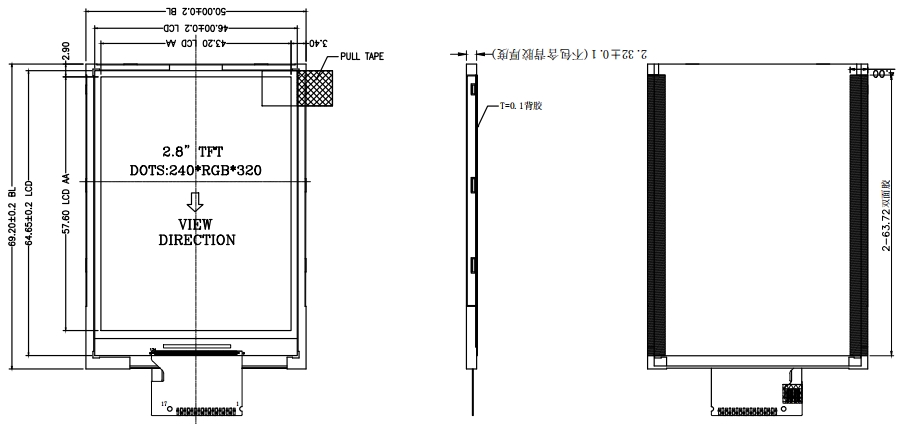

| 11 | Outline Dimension (H x V x D) | 50.00(H) x 69.20(V) x 2.32(D) | mm |
| 12 | Weight | (100) (Typ) | g |
| 13 | Interface | SPI | - |
| 14 | Support Color | 262 K/16.7 M | - |
| 15 | Viewing Direction | 12 O’clock | - |
| 16 | Drive IC | ST7789V | - |
| 17 | Operating Temp | -20~70 | °C |
| 18 | Storage Temp | -30~80 | °C |
Product Details
FAQ
Q1.What is your product range?
A1: We are 12 years of experience manufacturing TFT LCD and touch
screen.
>0.96" to 32" TFT LCD Module;
>Bar type LCD screen up to 48 inch;
>High brightness LCD panel custom;
>Capacitive touch screen up to 55"
>4 wire 5 wire resistive touch screen;
>One-step solution TFT LCD assemble with touch screen.
Q2.Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
>For the LCD display,backlight brightness and FPC cable can be
customized;
>For the touch screen,we can custom the whole touch panel like
the color,shape,cover thickness and so on according to the
customer's requirement.
>NRE cost will be refunded after the total quantity reaches 1K
pcs.
Q3.Which applications your products are mainly used for?
A3: Embedded system, Intercom system,Biometric,HMI,Smart home
,Robot,Hand-held PDA, after market automotive and etc.
Q4.What's the delivery time?
A4: >For samples order, 1-2weeks;
>For mass ordres,4-6weeks.
Q5.Do you provide free samples?
A5: For first time cooperation,samples will be charged,the amount will
be returned at the mass order stage. In regular cooperation,
samples are free. Sellers keep the right for any change.
Q6. Where can I get the datasheet, initialization code and other
technical files ?
A6:Unfortunately, This can not Support upload/download the files
for the time being, please contact with our sales.chat on Trade
Manager or send me a email (dyh0707@foxmail.com), we will send the datasheet by mail.
